Docker 3 -- 自建Docker Registry

08 May 2014

官方在Github上有一个项目 docker-registry, 专门用于自建Docker的Registry。

上面的README讲得很详细

简单的在dev模式下跑起来:

首先将项目clone下来,然后进入docker-registry,复制一份配置文件出来:

cp config/config_sample.yml config/config.yml

修改dev:字段下的配置,主要是配置 storage_path ,此为docker images等存放路径。

运行 Registry:

在Ubuntu下老的方式是:

先安装一些依赖

sudo apt-get install build-essential python-dev libevent-dev python-pip libssl-dev liblzma-dev libffi-dev
sudo pip install .

然后运行

gunicorn --access-logfile - --debug -k gevent -b 0.0.0.0:5000 -w 1 docker_registry.wsgi:application

新的运行方式:

docker run -p 5000:5000 registry

后者我至今还没成功,一直卡着:

root@tankywoo-docker:~/docker-registry-master# docker run -p 5000:5000 registry
Unable to find image 'registry' locally
Pulling repository registry
e260f5a77e52: Pulling dependent layers
873f518b98ef: Pulling dependent layers
0b520d776e7d: Pulling dependent layers
e8e5377f8307: Pulling dependent layers
b04ace768d59: Pulling dependent layers
1f7bbd131cd8: Pulling dependent layers
7fe668a14603: Pulling dependent layers
2930bc3d8f1e: Pulling image (latest) from registry, endpoint: https://cdn-registry-1.docker.io/v1/
9f98cb899f46: Pulling dependent layers
e7bac0a3804b: Pulling dependent layers
511136ea3c5a: Download complete
46e4dee27895: Download complete
0e5997dad26c: Pulling metadata

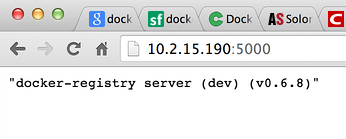

使用前者,会在本地打开5000端口监听,访问可以看到:

registry success

root@tankywoo-docker:~/docker-registry-master# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             VIRTUAL SIZE
ubuntu              newtest             276cc641e40e        23 hours ago        388.3 MB

Tag to create a repository with the full registry location.

root@tankywoo-docker:~/docker-registry-master# docker tag 276cc641e40e 10.2.15.190:5000/tankywoo
root@tankywoo-docker:~/docker-registry-master# docker images
REPOSITORY              TAG                 IMAGE ID            CREATED             VIRTUAL SIZE
ubuntu                  newtest             276cc641e40e        23 hours ago        388.3 MB
10.2.15.190:5000/tankywoo   latest              276cc641e40e        23 hours ago        388.3 MB

然后push上去:

root@tankywoo-docker:~/docker-registry-master# docker push 10.2.15.190:5000/tankywoo
The push refers to a repository [10.2.15.190:5000/tankywoo] (len: 1)
    Sending image list
    Pushing repository 10.2.15.190:5000/tankywoo (1 tags)
    Image 511136ea3c5a already pushed, skipping
    Image f10ebce2c0e1 already pushed, skipping
    Image 82cdea7ab5b5 already pushed, skipping
    Image 5dbd9cb5a02f already pushed, skipping
    Image 74fe38d11401 already pushed, skipping
    Image fe65a2781dae already pushed, skipping
    Image 276cc641e40e already pushed, skipping
    Pushing tag for rev [276cc641e40e] on {http://10.2.15.190:5000/v1/repositories/tankywoo/tags/latest}

然后看看 mydocker目录下:

root@tankywoo-docker:~/mydocker# find .                               [11/112]
.
./images
./images/82cdea7ab5b555f53c2adf8df75b0d2ad1e49dbfc11da50df3e7ea38454ed606
./images/82cdea7ab5b555f53c2adf8df75b0d2ad1e49dbfc11da50df3e7ea38454ed606/ancestry
./images/82cdea7ab5b555f53c2adf8df75b0d2ad1e49dbfc11da50df3e7ea38454ed606/_checksum
./images/82cdea7ab5b555f53c2adf8df75b0d2ad1e49dbfc11da50df3e7ea38454ed606/layer
./images/82cdea7ab5b555f53c2adf8df75b0d2ad1e49dbfc11da50df3e7ea38454ed606/json
./images/fe65a2781daea01c67c33f11868abe6d510833bca07b90fc681cdfe98a9196ac
./images/fe65a2781daea01c67c33f11868abe6d510833bca07b90fc681cdfe98a9196ac/ancestry
./images/fe65a2781daea01c67c33f11868abe6d510833bca07b90fc681cdfe98a9196ac/_checksum
./images/fe65a2781daea01c67c33f11868abe6d510833bca07b90fc681cdfe98a9196ac/layer
./images/fe65a2781daea01c67c33f11868abe6d510833bca07b90fc681cdfe98a9196ac/json
...
./repositories
./repositories/library
./repositories/library/tankywoo
./repositories/library/tankywoo/_index_images
./repositories/library/tankywoo/taglatest_json
./repositories/library/tankywoo/json
./repositories/library/tankywoo/tag_latest

已经有相关文件了

TODO 剩下的还得继续研究
